BATTERY ISOLATORS
The ZG ZETAGI battery separator is essential in DC systems where there are two or more battery banks which, although connected to a single source of charge, must remain isolated from each other.
It should fit a battery separator between the battery power generator / alternator and the batteries so that they receive the charge separately and individually; this will avoid the discharge of a battery to another.
| MODEL | SB702 | SB1203 | SB1602 | SB1603 | |
| Alternators | No. | 1 | 2 | 1 | 2 |
| Outputs | No. | 2 | 3 | 2 | 3 |
| Operating Voltage | Vdc | 12 ÷ 48 | 12 ÷ 48 | 12 ÷ 48 | 12 ÷ 48 |
| Max. Current | A | 70 | 120 | 160 | 160 |
| Dimensions (LxWxH) | mm | 120 x 100 x 63 | 120 x 200 x 63 | 120 x 200 x 63 | 120 x 250 x 63 |
| Weight | Kg | 0.6 | 1.2 | 1.22 | 1.52 |

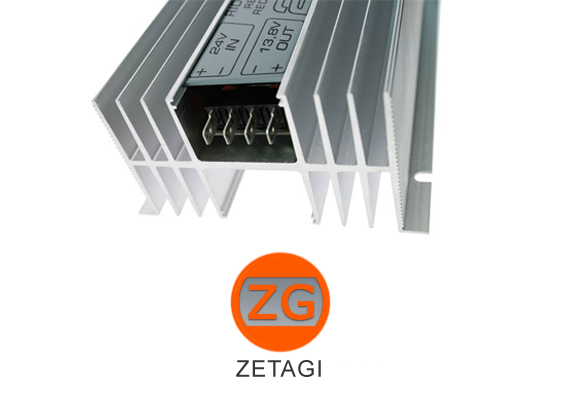

VOLTAGE REDUCERS
You cannot do without a voltage reducer when a truck, a boat or a camper has a 24V electrical system and you need to feed radios, CD players, telephones, light bulbs and any other service at 12V.
The characteristics of ZETAGI VOLTAGE REDUCERS meet everyone’s needs because they are made either with passive reduction system(linear) and with high-performance system (switching mode) for currents from 0 to 35 Amps.
They are resistant and always available thanking to a continuous production cycle.
Particularly suitable for power supply and radio monitor as they are totally free from any kind of electromagnetic interference.
| MODEL | R2 | R5 | R10 | R20 | R35 | |
| Input | Vdc | 13 ÷ 30 | 18 ÷ 30 | 18 ÷ 30 | 18 ÷ 30 | 18 ÷ 30 |
| Output | Vdc | 3-4.5-6-7.5-9-12 | 13.5 | 13.8 | 13.8 | 13.8internal adjustment |
| Max Load | A | 2 | 5 | 10 | 20 | 35 |
| Load Continual Service | A | 1 | 2.5 | 5 ÷ 9 (*) | 10 ÷ 18 (*) | 20 ÷ 32 (**) |
| Dimensions (LxWxH) | mm | 70 x 100 x 20 | 130 x 100 x 35 | 120 x 100 x 63 | 120 x 200 x 63 | 200 x 400 x 90 |
| Weight | Kg | 0.15 | 0.34 | 0.5 | 1.3 | 5 |
| .. | . | Full protection against short circuit, over-load, over temperature. |
